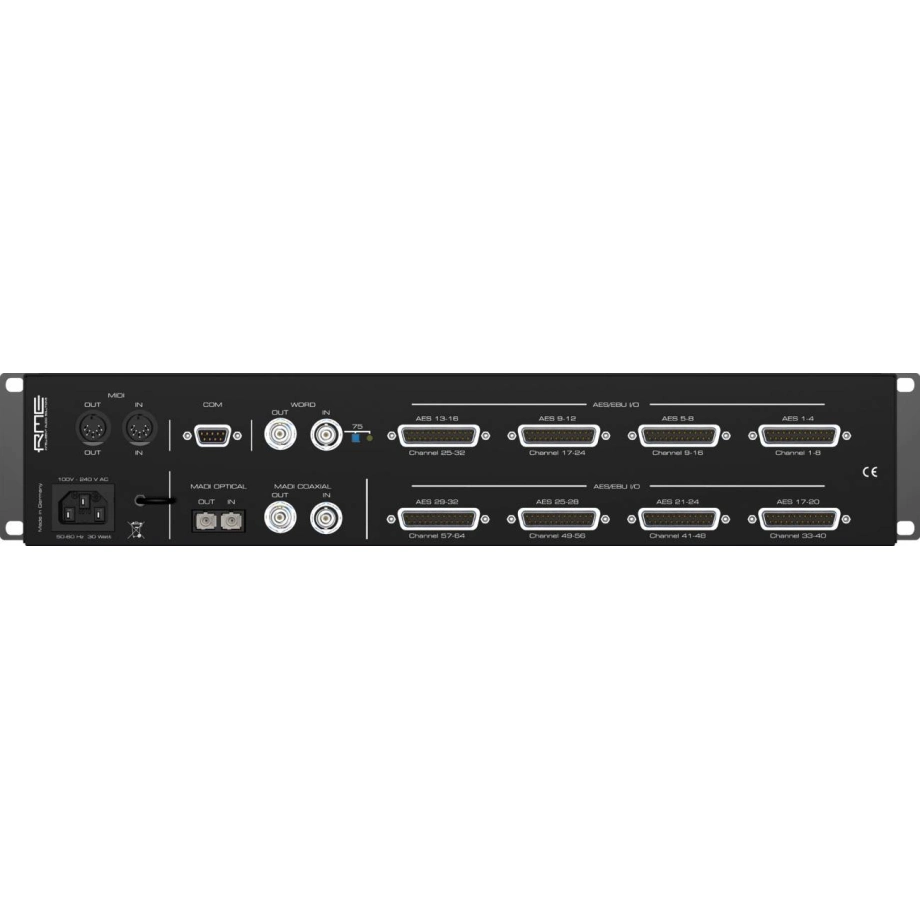

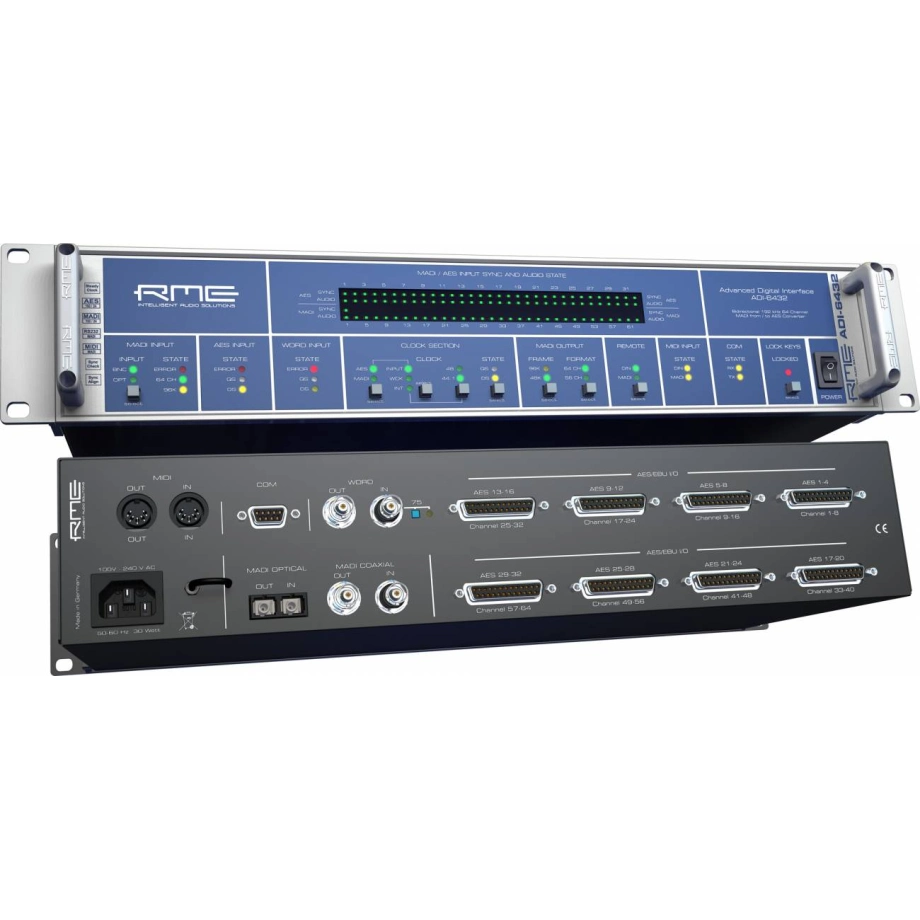

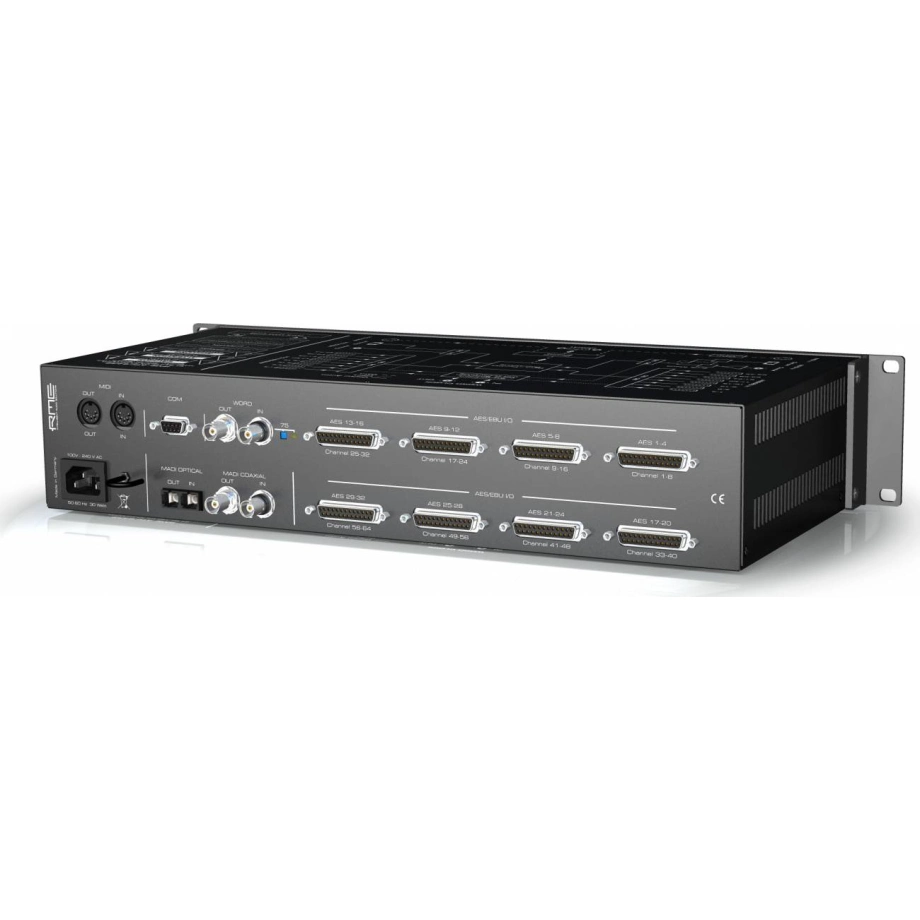

Рекордер, аудиоконвертор RME ADI-6432

 RME ADI 6432 содержит 64-х канальный преобразователь формата цифрового сигнала из MADI в AES.

Основные технические характеристики ADI-6432 :


• Input MADI: 1 x BNC, 1 x optical
• Output MADI: 1 x BNC, 1 x optical
• Input AES/EBU: 32 x, 4 x per D-sub connector, transformer balanced, SPDIF compatible
• Output AES/EBU: 32 x, 4 x per D-sub connector, transformer balanced, 4 Vpp
• Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp)
• Output word clock: BNC, low impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
• MIDI input and output: via two 5-pin DIN jacks
• COM port: RS232 via 9-pin D-sub, 9600/19200/115200 Baud
• Sync sources: MADI, AES, word clock, internal
• Varipitch: by input signal or word clock
• Sample frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Sample rate range: MADI: 32 - 192 kHz, word clock: 27 kHz - 200 kHz, AES: 28 kHz - 200 kHz
• Jitter: Internal clock < 1 ns, external clocks < 1 ns
• Jitter suppression: >30 dB (2.4 kHz)
• Jitter sensitivity: all PLLs operate error-free even at 100 ns
